Hydraulic Side Link Kits
Fully assembled kits - ready to plug in and work!

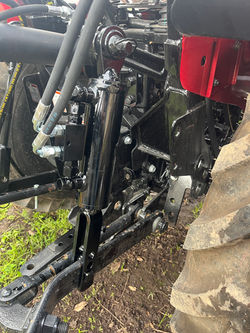

If you're on this page, you probably already know how useful a hydraulic side link is - from adjusting your box blade or scraper, using pallet forks, to making it a snap it attach implements with a quick-hitch, these cylinders get the job done.
Each kit comes complete with:
-
Hydraulic side link cylinder
-
30" hydraulic hoses (Send an email if you want other lengths)
-
½" Pioneer male couplers
**Length measurements of center-of-pin to center-of-pin
 |
|---|
 |
Free Shipping when ordered with a Remote Hydraulic Kit
Slant Lower Fork / Forked Top
-
2.25" Travel
-
1.5" Diameter Hydraulic Cylinder
-
No Check Valve
-
Length:
-
13-15"
-
Recommended for:
Kubota BX series
$375
Slant Lower Fork / Ball Top
-
4" Travel
-
1.2" Diameter Hydraulic Cylinder
-
No Check Valve
-
Length:
-
15-19"
-
16.5-20.5"
-
Recommended for:
Kubota B series
Kubota LX Serieds
$425
Straight Lower Fork / Ball Top
-
4" Travel
-
2" Diameter Hydraulic Cylinder
-
Double-Pilot Check Valve
-
Length Settings:
-
16-20"
-
17-21"
-
18-22"
-
Recommended for:
Kubota L-Series
John Deere 3000 & 4000
Mahindra 2123 & 2126
$425
Straight Lower Fork / Ball Top
-
6" Travel
-
2" Diameter Hydraulic Cylinder
-
Double-Pilot Check Valve
-
Length Settings:
-
18-24"
-
19-25"
-
20-26"
-
Recommended for:
Kubota MX-Series
$445
How to find a compatible side link:
A hydraulic top link must match your existing side link one all of these points:
-
Top Connection
-
Can be either a swivel ball or fork on the cylinder
-
Swivel balls are more universal - 3/4" Pin
-
Forks are more specialized - I only stock one cylinder with a forked top
-
-
-
Lower Fork
-
Can either be slanted or straight
-
-
Length
-
Measure your existing side link (center of pin to center of pin) and make select a new hydraulic cylinder's range covers that existing length
-
